Decking Sheet Connections Details


Cladding fixing detail: The accessories are added as per design requirement

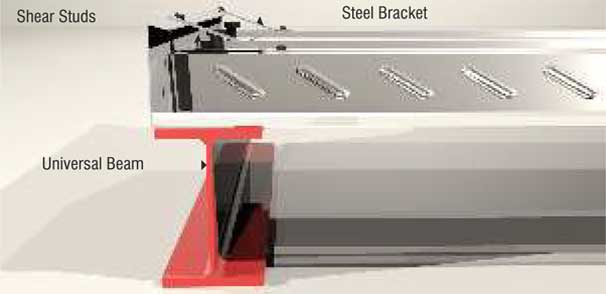

End details-flush type: standard end closure detail adopted for steel frame structure

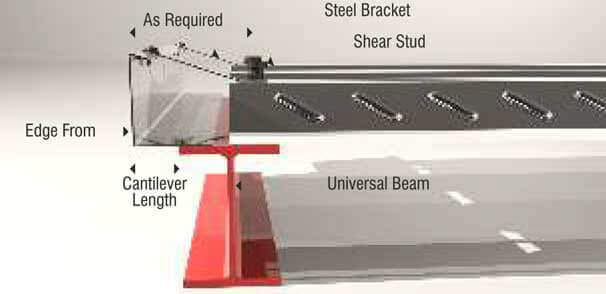

End details-option 1: details adopted for cantilever end projections

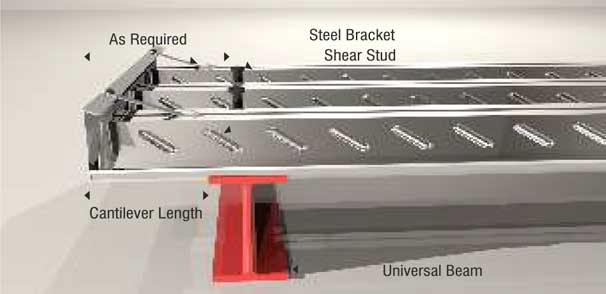

End details-option 1: Alternate details for structures where projections are necessary

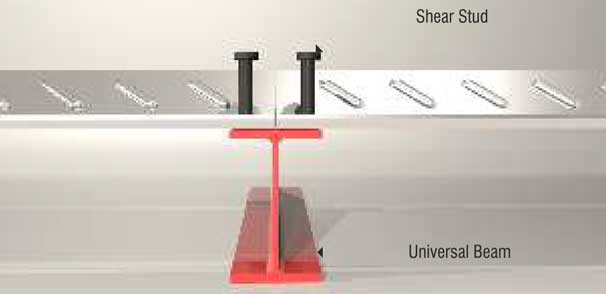

Butt joint details: standard joint details for continuous casting of slab

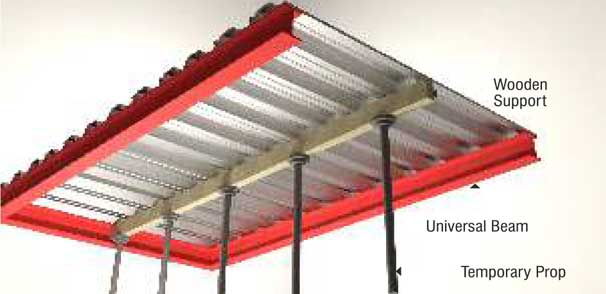

Temporary support details(if required) : Cladding profile spans longer than conventional system where possibility of temporary support is less

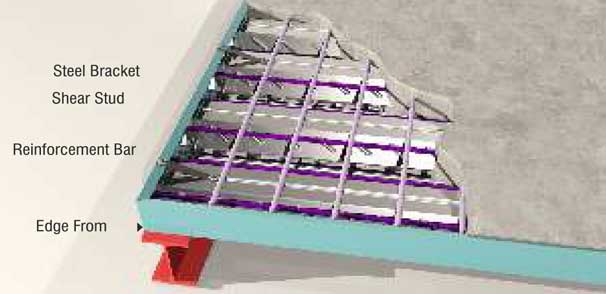

Corner details: the ends are closed to make sure the concrete slurry takes the required shape quickly

Concrete Connection details



Concrete fixing details: The casting of beam & slab is done simultaneously. This saves time and brings economy.
